U44
Vendor
Unilock
Regular price
$3.50
Sale price
$3.50
Quantity must be 1 or more

Hollandstone Series

Sold By The Sq Ft

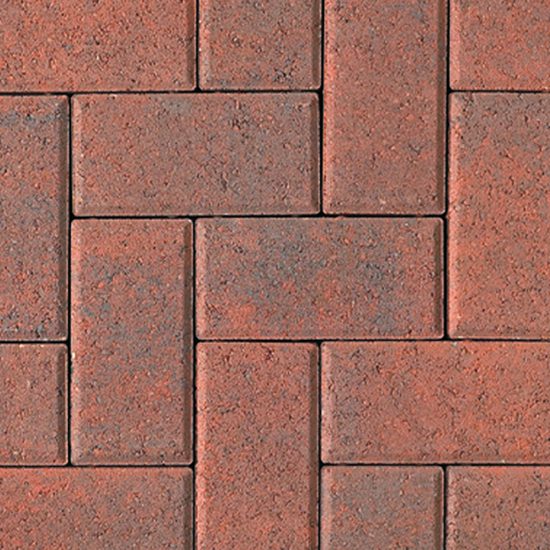

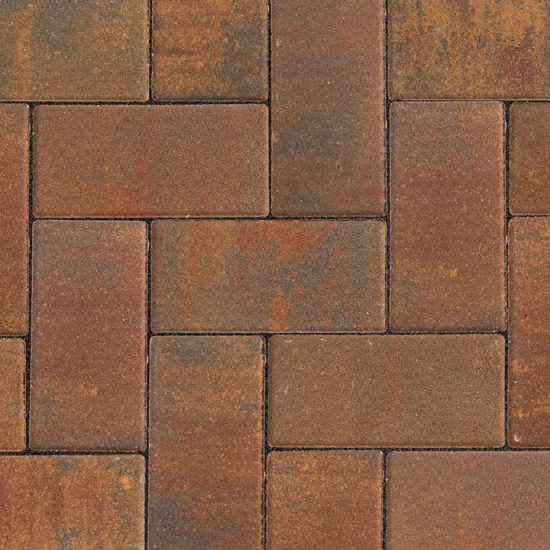

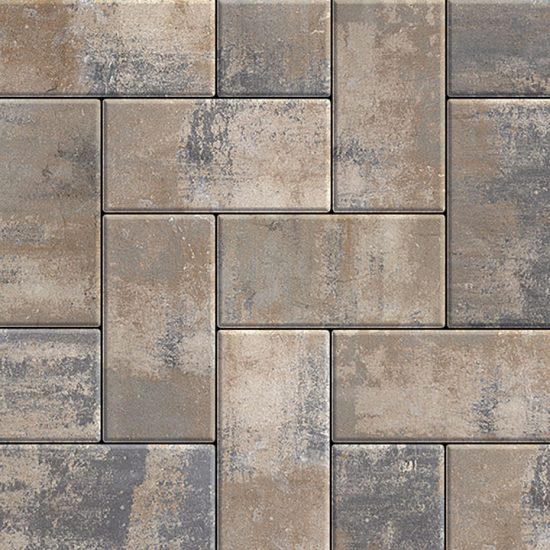

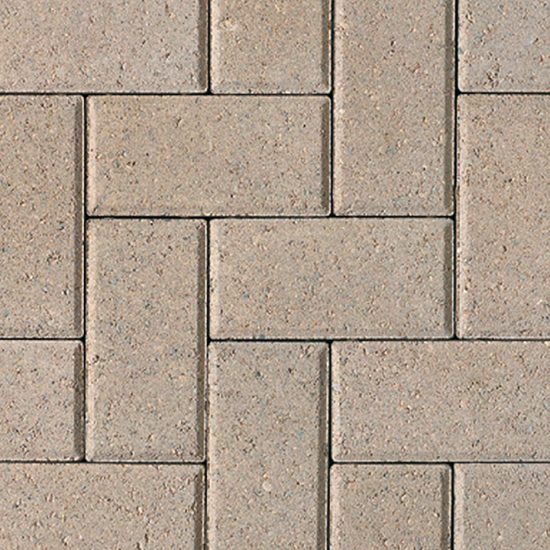

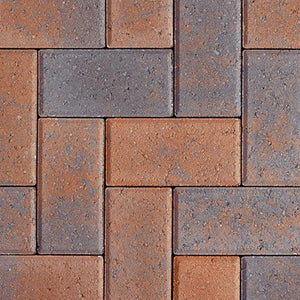

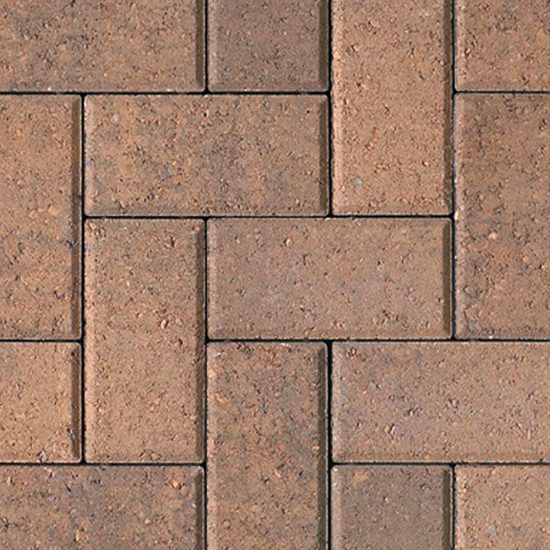

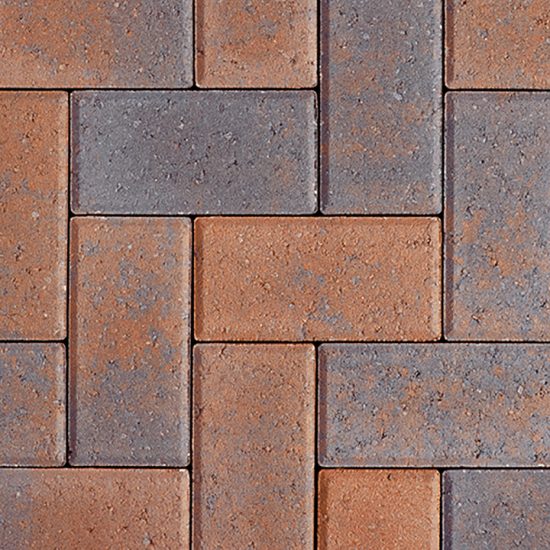

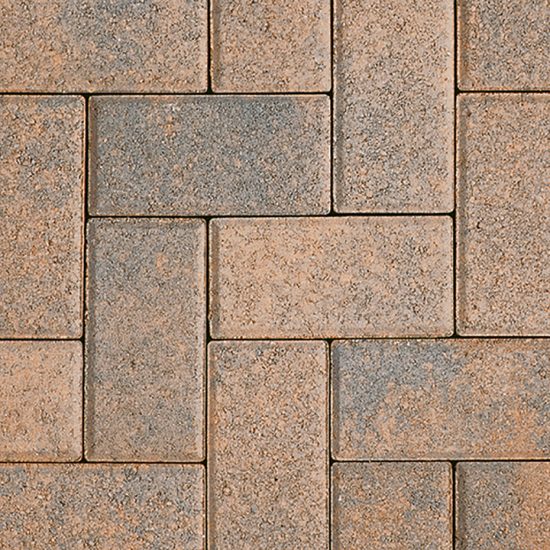

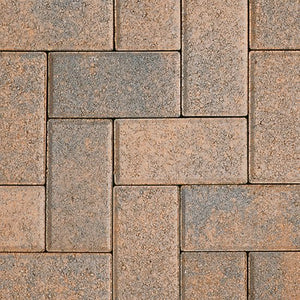

Hollandstone Classic is available in 5 Colors: Terra Cotta, Rustic Red, Sandstone, Beechwood and St Clair

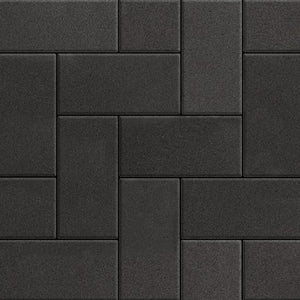

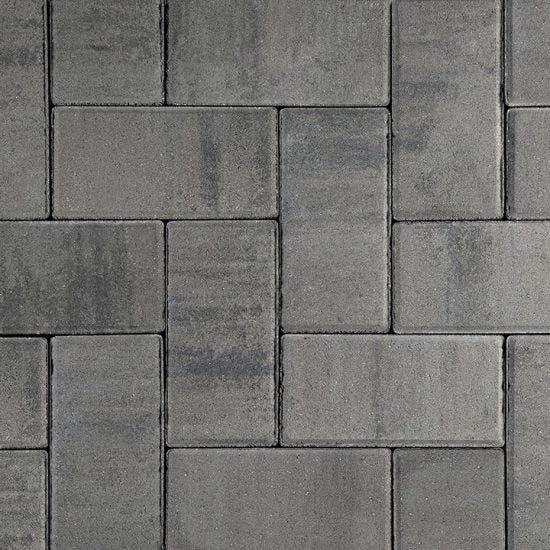

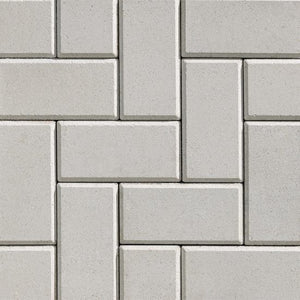

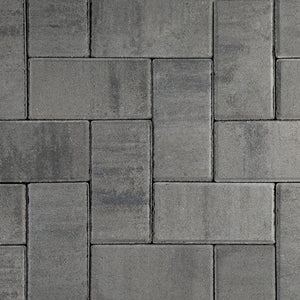

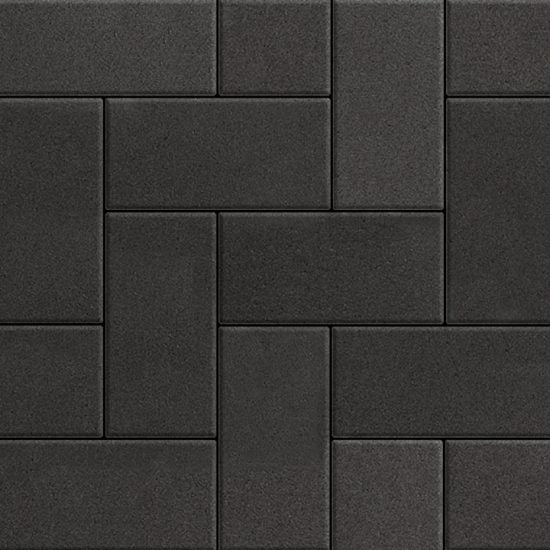

Hollandstone Premier is available in 3 Colors:  Granite, Charcoal, and Fossil

SHAPE AND SIZE

STANDARD
3 7/8" x 7 7/8" x 2 3/8"

106.40 Sq Ft Per Pallet
11.80 Sq Ft Per Layer
9 Layers Per Pallet
1.50 Linear Ft Per Sq Ft
159.45 Linear Ft Per Pallet - Soldier
4.58 Units Per Sq Ft
486 Units Per Pallet
54 Units Per Layer
323.79 Lbs Per Layer
2914.13 Lbs Per Pallet
6 Lbs Per Unit
17.72 Linear Ft Per Layer - Soldier
.33 Linear Ft Per Unit - Soldier
.22 Sq Ft Per Unit
3.0 Linear Ft Per Sq Ft - Sailor
318.90 Linear Ft Per Pallet - Sailor
35.43 Linear Ft Per Layer - Sailor

RECOMMENDED BASE STABILIZATION – one layer of DriveGrid™" stabilization grid between subgrade and base material. Recommended depth 8” to 10” below pavers for maximum stability and performance. Use under Standard Base or Permeable Base.

STANDARD BASE – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

STANDARD BEDDING COURSE – 1” thick of coarse sand– in accordance with ASTM-D2940 screeded over base.

ALTERNATIVE PERMEABLE BASE – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

ALTERNATIVE PERMEABLE BEDDING COURSE – 1” thick of 1/4” clear open-graded chip stone – (ASTM No. 8) screeded over base.

SPECIAL NOTE: CONCRETE DIRECT OVERLAY – In some areas of the country and in some applications pavers are very successfully placed directly over concrete. Concrete as a base is in itself quite strong, but it can affect the structural integrity of the paver particularly in vehicular applications, where the concrete below is sub-par. The following considerations must be taken into account to insure that the concrete below the surface is ideal:

  1. Concrete integrity – concrete must be in good condition, and not crumbling
  2. Drainage slope – concrete below must be sloped away from all buildings and structures
  3. Drainage holes – In lowest areas of the concrete, drill 1” holes in concrete (on 12” centers) and fill holes with ¼” chip (ASTM No. 8)
  4. Base drainage - the area below the concrete must not be subject to frost movement
  5. Surface - surface must be totally smooth and flat equivalent to the desired finished surface
  6. Waterproofing - may be required when installing pavers over concrete where there is a basement or cold cellar below. Install an impervious rubber membrane over the surface prior to installing any pavers over the surface.
  7. Jointing Sand - Use an impervious polymeric sand when installing over concrete
